Bespoke Large Steel Bunded Diesel Tanks

Can’t find the size you are looking for?

We manufacture our large steel tanks in capacities up to 100,000 litres and can tailor the tank dimensions to suit your specific needs. Get touch with our friendly expert team to receive your bespoke quote.

All our steel bunded diesel tanks are extremely durable and weather-resistant, manufactured in a thick mild steel. This makes them suitable for a range of industries including transport and emergency generators for the public sector.

As standard our large steel bunded diesel tanks are fitted with tier-one ancillary equipment stored within a walk-in high-security cabinet. This provides a self-contained, low-maintenance unit that simply requires a flat concrete base and final electrical connection. Optional extras and upgrades are also available.

When correctly installed, maintained and used, this tank will give you an expected lifespan well in excess of 20-years and a 10-year guarantee, when registered.

If you need help finding what you’re looking for, don’t hesitate to contact our friendly sales team for more information, advice, quotations, or more information on our exclusive discounts on trade prices.

add to quote

add to favourites

Up to 10 Year Warranty

Bespoke Large Steel Bunded Diesel Tanks Dimensions

Capacity (Ltrs) up to 100,000
Length (mm) bespoke
Width (mm) bespoke
Height (mm) bespoke
HVO Compatible Yes
Material Steel

specification

The standard specification includes:

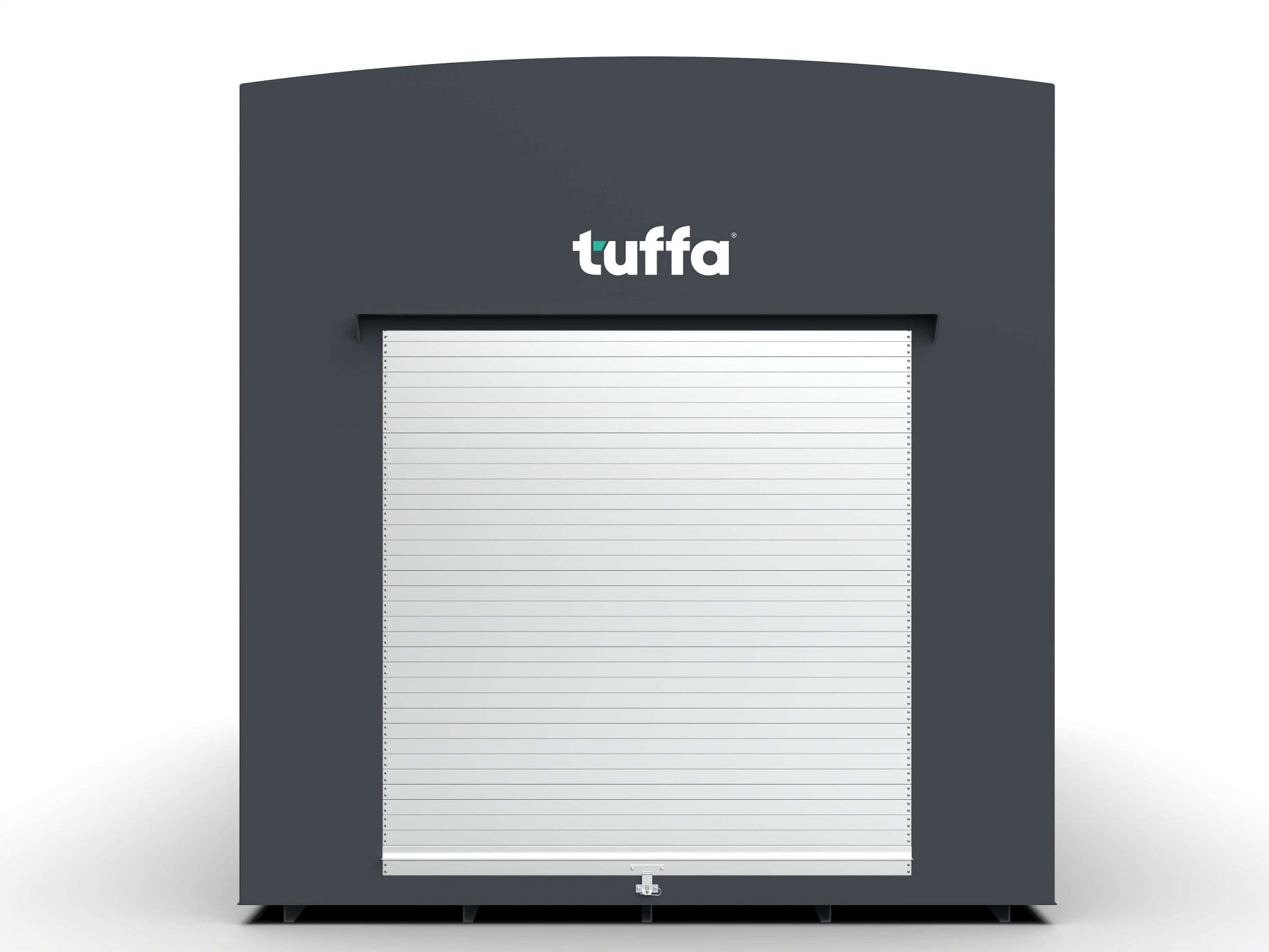

1m full-end cabinet with roller shutter door
3” fill point
Overfill prevention valve
Vent
External pump (230v)
10-micron water & particulate filter
K44 pulse meter
6m delivery hose and automatic shut off nozzle
Control panel
C2020 contents gauge with bund alarm (230v)
1.5″ top suction line terminating 1m from base of cabinet
2 x 2″ spare sockets
2 x 1.5″ spare sockets
4 x cabinet louvre vents
Harness rail
Channel runners
4 x lifting eyes

key benefits

Forecourt-style dispensing and convenience
Fitted with premium ancillary equipment
Bunded in accordance with Oil Storage Regulations
Made from mild steel, which is very strong and durable
Greater versatility with a range of optional extras available to customise the tank for your site requirements
Lockable cabinet prevents theft
Design life over 20 years
10-year warranty when registered
Compatible with HVO fuel and HVO diesel blends

options

Most common options include:

Hose reel – a self-retracting hose reel with a 10m delivery hose.
Pump options – higher flow rate pumps available.
Fuel management system – a fuel management system fitted within the lockable cabinet that allows authorised users to dispense the fuel from the tank.
No dispensing equipment – suitable for diesel generators or sites with existing dispensing equipment.
Bare tank – 1.5″ top suction line terminating low level in the cabinet with anti-siphon valve. Additional top suction line available. This replaces dispensing equipment, including the pump, hose & pulse meter.
