30000VBFS

30000 Litre Plastic Bunded Diesel Tank

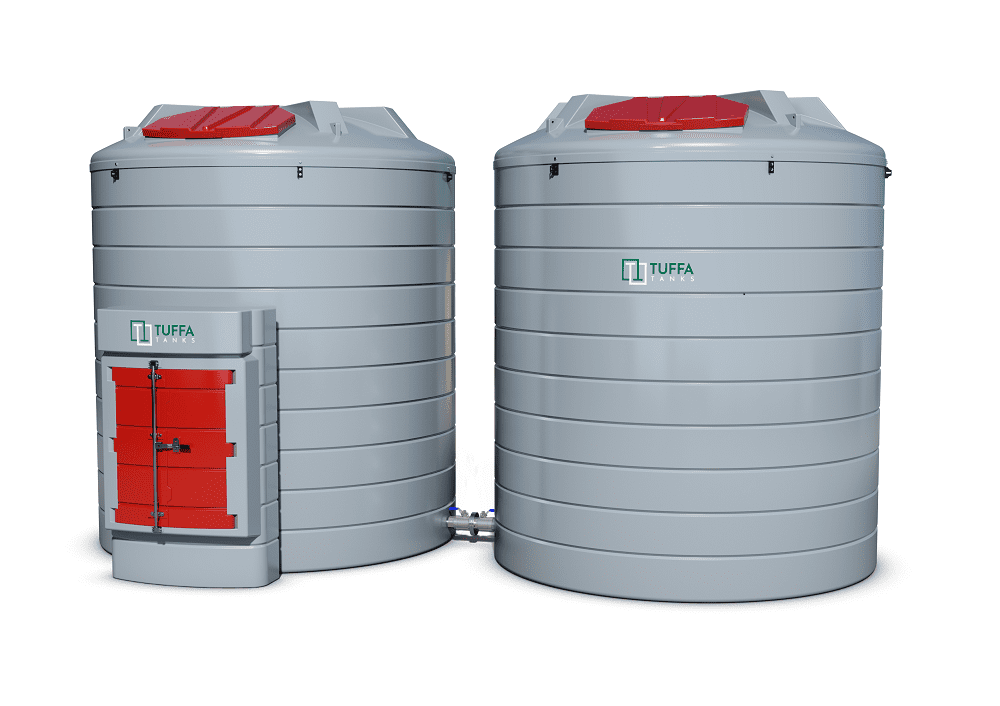

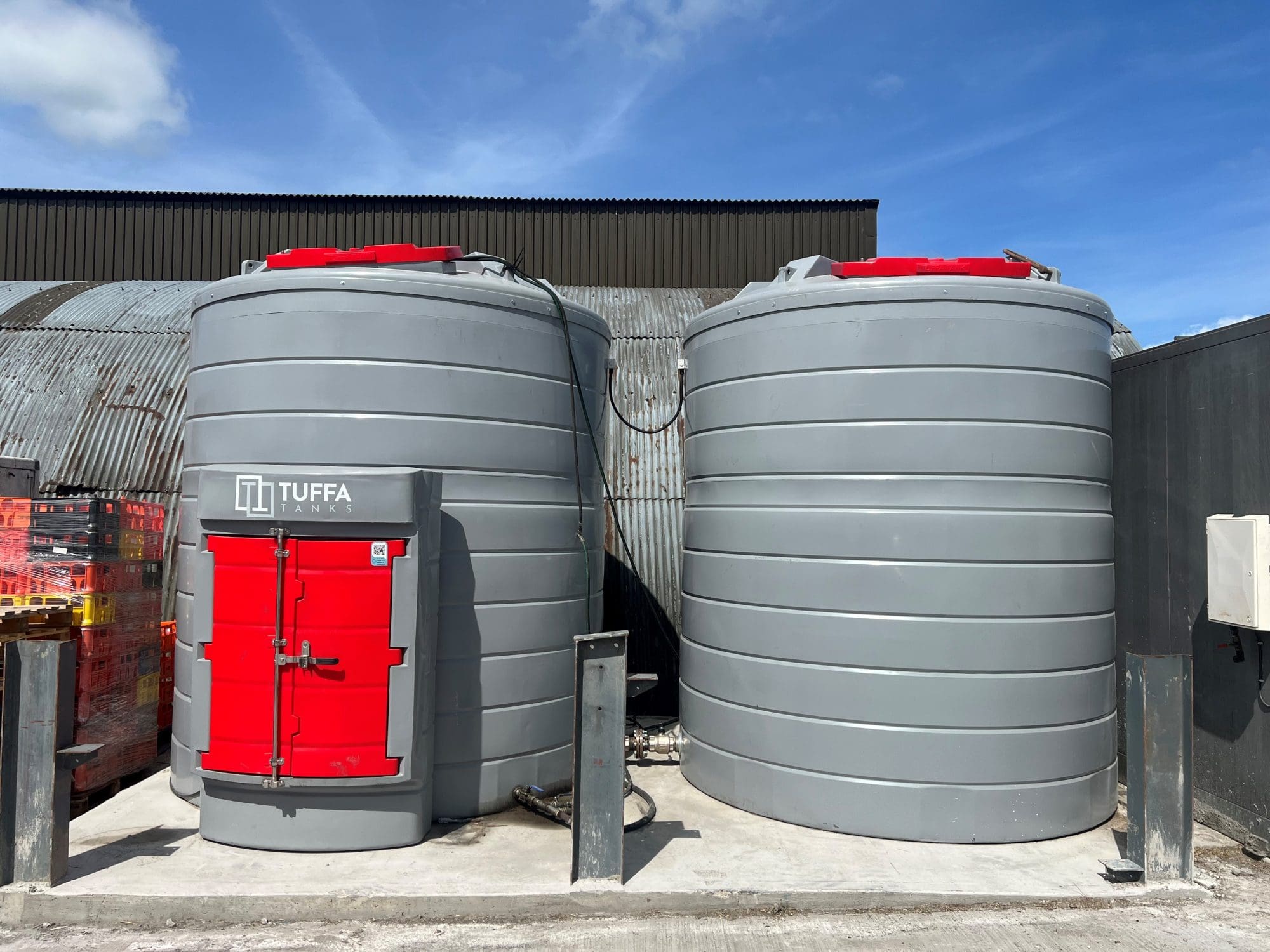

Our 30,000-litre plastic bunded diesel tank consists of two plastic bunded 15,000-litre tanks interlinked to give a capacity of 30,000 litres.

This is our largest plastic diesel storage and provides a great affordable alternative to our steel tanks of a similar capacity.

For this reason, the 30,000-litre plastic bunded diesel tank is our most cost-effective tank allowing you to benefit from forecourt style dispensing and huge savings from bulk buying diesel with a comparatively small CapEx.

Both interlinked tanks contain a plastic primary tank holding the fuel and a plastic bund (outer tank) protecting against leaks and spills while complying with UK oil storage regulations.

The main tank is fitted with a lockable cabinet housing the ancillary equipment, including a dispensing pump, flowmeter, hose with an automatic shut-off nozzle, FMS contents gauge and tank alarm. Optional extras are also available.

The second tank is a simple bunded holding tank interlinked with the main tank.

This system can store and dispense red or white diesel and HVO100 or HVO diesel blends.

Optional Extras*

add to quote

add to favourites

Up to 10 Year Warranty

30000 Litre Plastic Bunded Diesel Tank Dimensions

Capacity (Ltrs) 30000
Diameter (mm) 2890
Height (mm) 3500
HVO Compatible Yes
Material Plastic

specification

Our 30000VBFS bunded diesel tank is comprised of two interlinked 15,000 litre plastic bunded tanks consisting of: 1 x 15,000 bunded diesel dispensing tank complete with:

3″ socket for interlinking
2″ BSP fill connection with cap and chain
Vent
External pump 230V
Mechanical flowmeter
6m of delivery hose
Automatic shut-off nozzle
10-micron water and particulate filtration
Key switch – to operate the pump
Nozzle holster
FMS contents gauge and tank alarm 230V
Overfill prevention valve
Lockable Cabinet

and 1 x 15,000 bunded diesel tank complete with:

3″ socket for interlinking
2″ BSP fill connection with cap and chain
Vent

1 x interlinking kit consisting of a 3” PN16 flange enabling straightforward connection of the two 15,000 litre tanks

key benefits

The same capacity as our large steel tanks with the premium ancillary equipment of our 15000VBFS model, all at the comparatively low cost and quick lead times of our plastic range
Forecourt-style dispensing and convenience
Manufactured to prolong the usable life of diesel
Fitted with premium ancillary equipment
Bunded in accordance with Oil Storage Regulations
Made from an extremely durable, UV-stabilised, corrosion-resistant and recyclable polyethylene
A range of optional extras are available to customise the tank for your site requirements
Lockable cabinet prevents theft
Serviceable lifespan over 20 years
10-year warranty when registered
Compatible with HVO fuel and HVO diesel blends

options

K44 pulse meter – to enable connection to an existing fuel management system. This replaces the standard flowmeter.
High flow output with hose reel – a higher output pump, filter and nozzle complete with a 10m x 1” delivery hose with reel which replaces the standard flow option.
Fuel management system – a fuel management system fitted within the lockable cabinet that allows authorised users to dispense the fuel from the tank.
HDA level sensor – the fuel management system above also allows for connection to a compatible 4-20mA level probe (accurate to +/-0.5% ) to enable monitoring of the storage tank contents, including current levels and dispensed quantities, which also reports to the supplied software.
No dispensing equipment – suitable for diesel generators or sites with existing dispensing equipment.
