3500VBFS

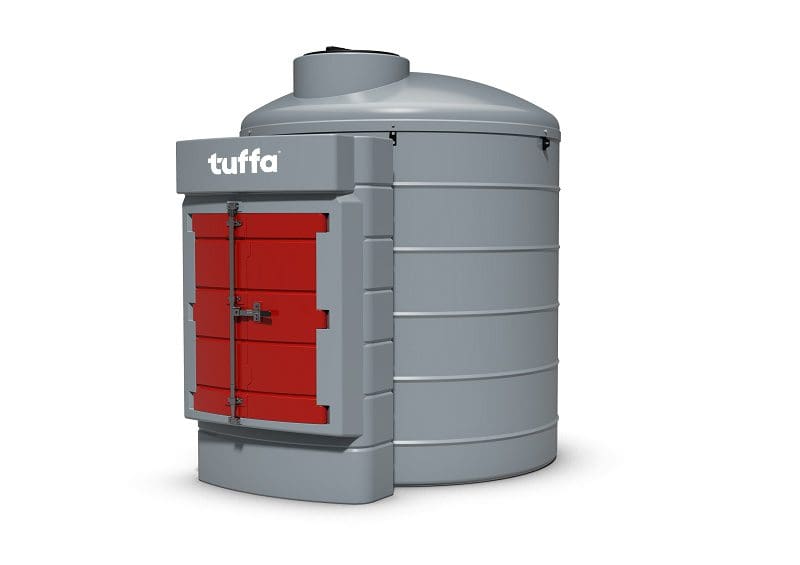

3500 Litre Plastic Bunded Diesel Tank

Our 3500-litre plastic bunded diesel tank has the capacity to safely store 3500 litres of white diesel, red diesel, HVO100 or HVO diesel blends.

This model is the smallest of our vertical bunded fuel stations, which features a cabinet to secure the tier-one ancillary equipment safely.

Diesel tank models starting from 3500 litres have many optional extras, including high-flow pumps, a hose reel and a fuel management system.

As standard, this tank is powered by mains electricity (230V). However, a 12V/24V option is also available to power the pump from vehicles. This is a perfect option for locations without mains electricity.

We manufacture the 3500-litre plastic bunded diesel tank in UV-stabilised, seamless and corrosion-resistant polymer, which is a highly durable recyclable plastic.

Our tanks have a 10-year guarantee (when registered) and 20-year design life.

Optional Extras*

add to quote

add to favourites

Up to 10 Year Warranty

3500 Litre Plastic Bunded Diesel Tank Dimensions

Capacity (Ltrs) 3500
Diameter (mm) 2013
Height (mm) 2520
HVO Compatible Yes
Material Plastic

specification

External pump 230V
6m of 3/4″ delivery hose
Automatic shut-off nozzle
Mechanical flowmeter
Nozzle holster
Control panel with key switch 230V
2″ BSP fill connection with cap and chain
Overfill prevention valve
Vent
FMS gauge and alarm 230V
10-micron water and particulate filtration
Lockable cabinet

key benefits

Forecourt-style dispensing and convenience
Manufactured to prolong the usable life of diesel
Fitted with premium ancillary equipment
Bunded in accordance with Oil Storage Regulations
Made from an extremely durable, UV-stabilised, corrosion-resistant and recyclable polyethylene
A range of optional extras is available to customise the tank for your site requirements
Lockable cabinet prevents theft
Serviceable lifespan over 20 years
10-year warranty when registered
Compatible with HVO fuel and HVO diesel blends

options

K44 pulse meter – allows connection to a separate fuel management system.
Hose reel – a self-retracting hose reel with a 10m delivery hose.
Pump options – 12V, 24V and higher flow rate pumps available.
Fuel management system – a fuel management system fitted within the lockable cabinet that allows authorised users to dispense the fuel from the tank.
HDA level sensor – the fuel management system above also allows for connection to a compatible 4-20mA level probe (accurate to +/-0.5% ) to enable monitoring of the storage tank contents, including current levels and dispensed quantities, which also reports to the supplied software.
No dispensing equipment – suitable for diesel generators or sites with existing dispensing equipment.
