10000VBFS

10000 Litre Plastic Bunded Diesel Tank

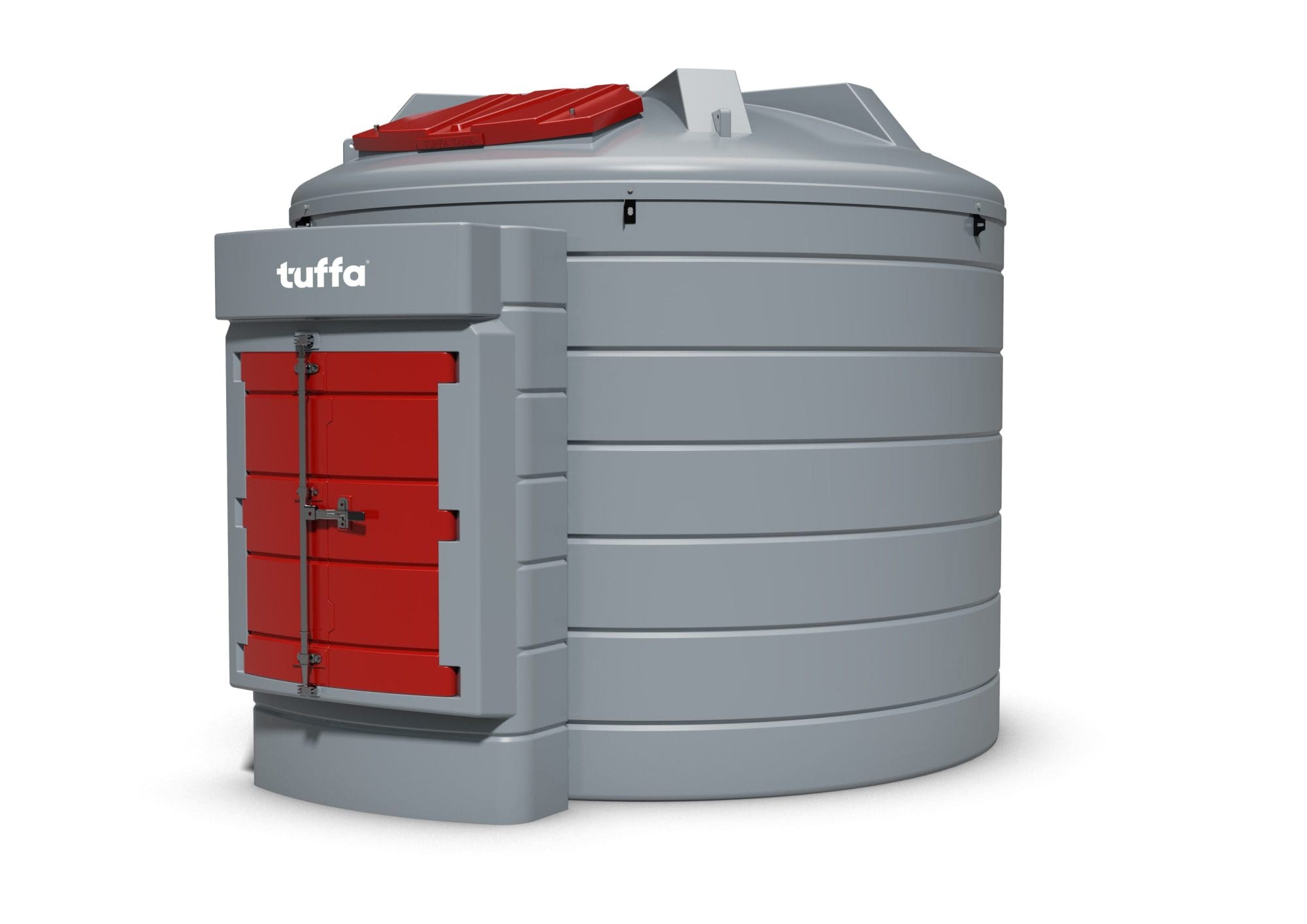

Our 10,000-litre plastic bunded diesel tank is an above-ground diesel fuel station consisting of a primary tank (which holds the fuel) surrounded by a bund fitted with a cabinet.

The cabinet safely houses tier-one ancillary equipment, including an external pump, K33 mechanical flowmeter, automatic shut-off nozzle and FMS gauge and alarm. Optional extras and upgrades include a fuel management system, pulse meter and high-flow pump.

The 10,000-litre plastic bunded diesel tank is complete and ready to use, requiring only a hard, flat concrete base and an electrical connection (if not choosing the 12/24V version).

This tank is compatible with white or red diesel and HVO100 or HVO diesel blends. This bunded diesel tank is safe and durable with a 20-year design life and 10-year warranty, when registered.

Optional Extras*

add to quote

add to favourites

Up to 10 Year Warranty

10000 Litre Plastic Bunded Diesel Tank Dimensions

Capacity (Ltrs) 10000
Diameter (mm) 2890
Height (mm) 2590
HVO Compatible Yes
Material Plastic

specification

External pump 230V
6m of delivery hose
Automatic shut-off nozzle
K33 mechanical flowmeter
Nozzle holster
Control panel with key switch 230V
2″ BSP fill connection with cap and chain
Overfill prevention valve
Vent
FMS gauge and alarm 230V
10-micron water and particulate filtration
Lockable cabinet

key benefits

Forecourt-style dispensing and convenience
Manufactured to prolong the usable life of diesel
Fitted with premium ancillary equipment
Bunded in accordance with Oil Storage Regulations
Made from a highly durable, UV-stabilised, corrosion-resistant and recyclable polyethylene
A range of optional extras is available to customise the tank for your site requirements
Lockable cabinet prevents theft
Serviceable lifespan over 20 years
10-year warranty when registered
Compatible with HVO fuel and HVO diesel blends

options

K44 pulsed outlet flowmeter – allows connection to a separate fuel management system.
Hose reel – a self-retracting hose reel with a 10m delivery hose.
Pump options – 12V, 24V, and higher flow rate pumps available upon request.
Fuel management system – a fuel management system fitted within the lockable cabinet that allows authorised users to dispense the fuel from the tank.
HDA level sensor – the fuel management system above also allows for connection to a compatible 4-20mA level probe (accurate to +/-0.5% ) to enable monitoring of the storage tank contents, including current levels and dispensed quantities, which also reports to the supplied software.
No dispensing equipment – suitable for diesel generators or sites with existing dispensing equipment.
