3000PT

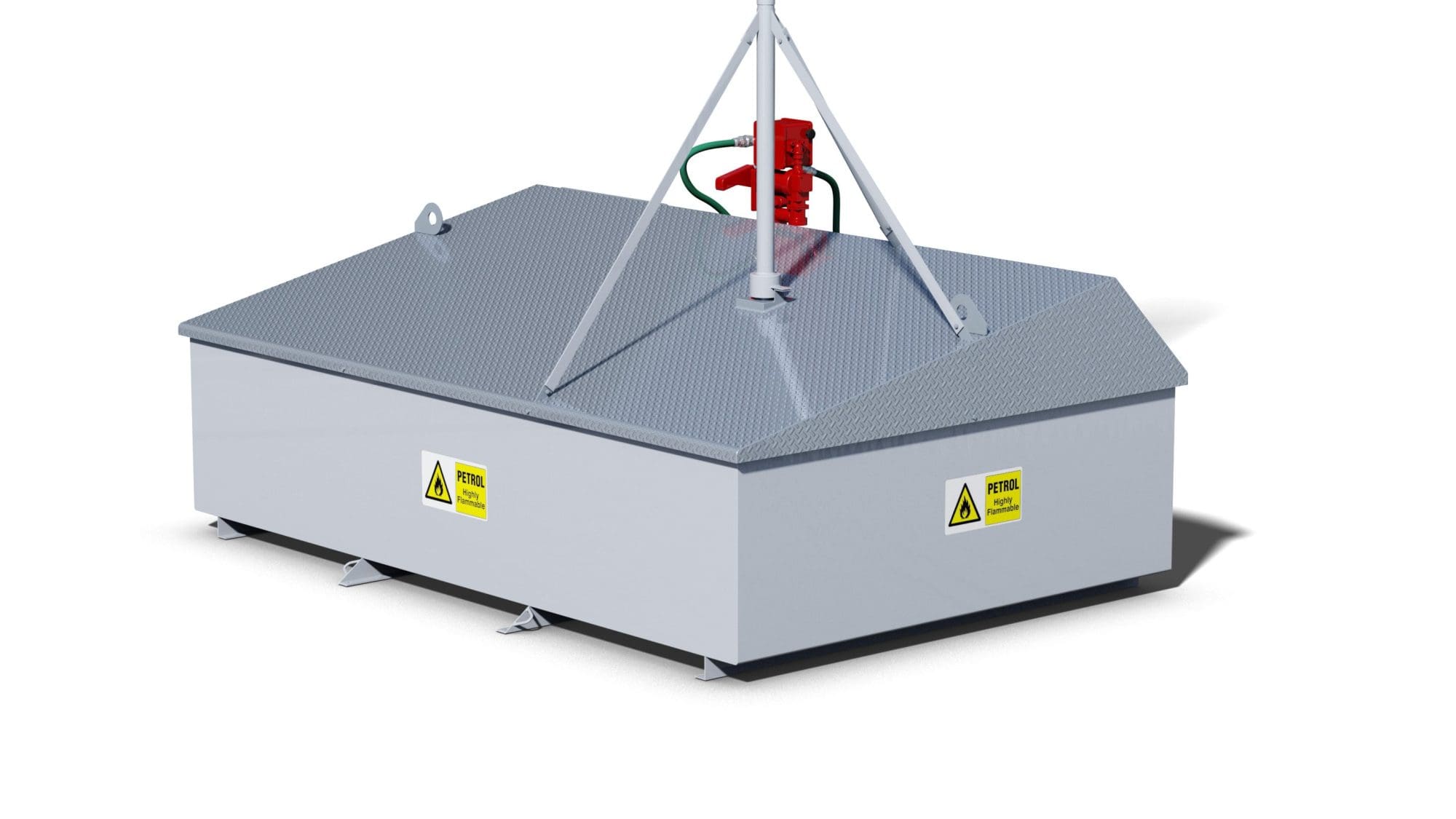

3000 Litre Petrol Tank

Our 3000-Litre Petrol Tank (660 gallons) is our highest capacity petrol tank we manufacture.

The primary tank and bund are constructed with a thick 3mm mild steel which topped with a 4.5mm steel durbar.

An integrally fitted fire protected jacket is then wrapped around the primary tank. This makes our tanks extremely safe, strong and durable giving the tank a life expectancy of over 20 years when correctly installed, used and maintained.

We also offer a 10 year warranty on this tank when registered.

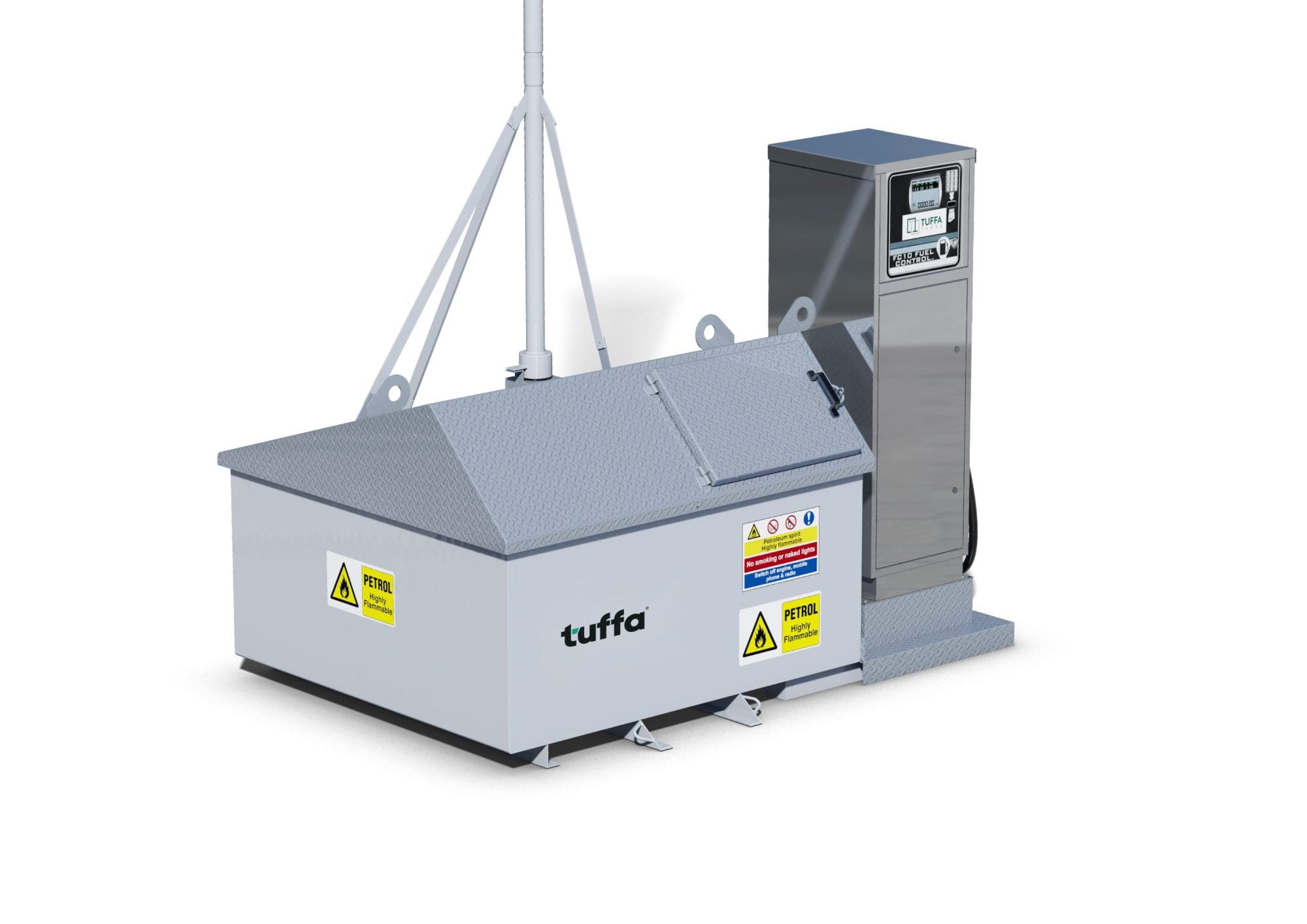

Our 3000-Litre Petrol Tank comes with a range of dispensing equipment from simple hand pump, mains 230V pump, 12V pump charged by your vehicle or a Hytek Alpha FC10 pump with fuel management system.

Our Tank is fully compliant with UK regulations and easy to install requiring only a solid concrete base and final electrical connection where required.

For more information, contact our friendly Sales team for advice or quotes and discounts on trade prices.

Options*

add to quote

add to favourites

Up to 10 Year Warranty

3000 Litre Petrol Tank Dimensions

Capacity (Ltrs) 3000
Length (mm) 2980
Width (mm) 1980
Height (mm) 4500

specification

Fire protective jacket on primary tank
4” BSP fill connection with cap and chain
2” 4.5m spark arrestor vent stack
Lockable access hatch
Plastic dipstick
Fork lift skids
Bolt down connections
Earth strap and rod
Powder coated paintwork: colour RAL 7047 Grey (tank and vent) and RAL 9006 Grey (lid)
Pump with inline strainer options: 230V, 12V, hand pump
3m delivery hose and nozzle
Steel welded construction for primary tank and bund

*Please note, this system is not designed to be sited on a raised base, the tank must be sited at the same level as the delivery tanker.

key benefits

All tanks manufactured from only high quality mild steel
Design versatility to suit almost every site requirement
Minimum 110% bund capacity to comply with regulations
Only premium ancillary equipment is fitted
Design life in excess of 20 years
Weatherproof
Bunded and Fire Protected storage
Designed and built in the UK
Safe and legal petrol storage
Secure padlock system
Easy fuel metering
Fork lift ready
Hydraulic lid

options

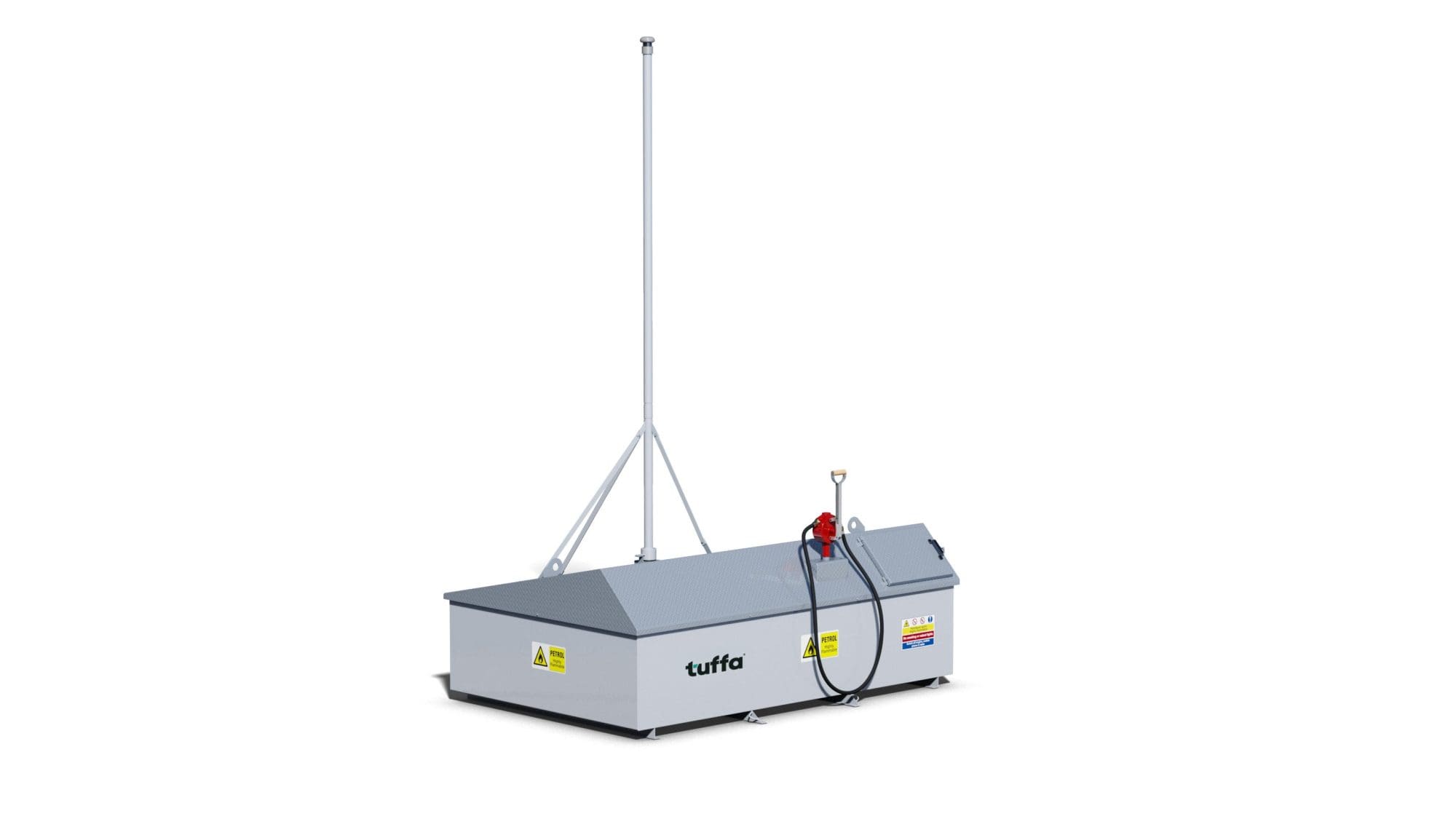

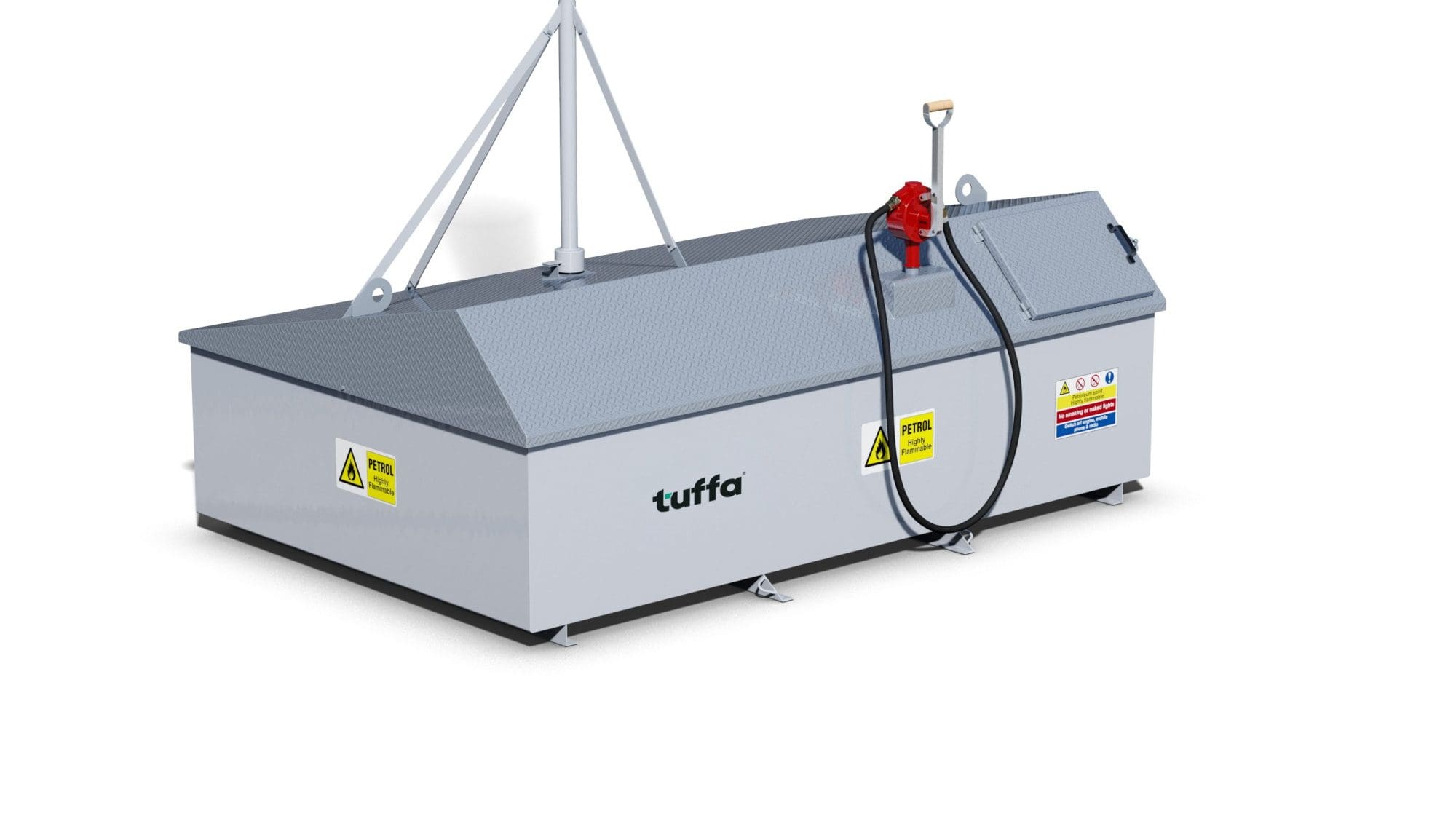

Hand pump – for sites that have no access to power.
12V pump – for sites requiring a quicker flow rate than the standard hand pump, and have access to battery power.

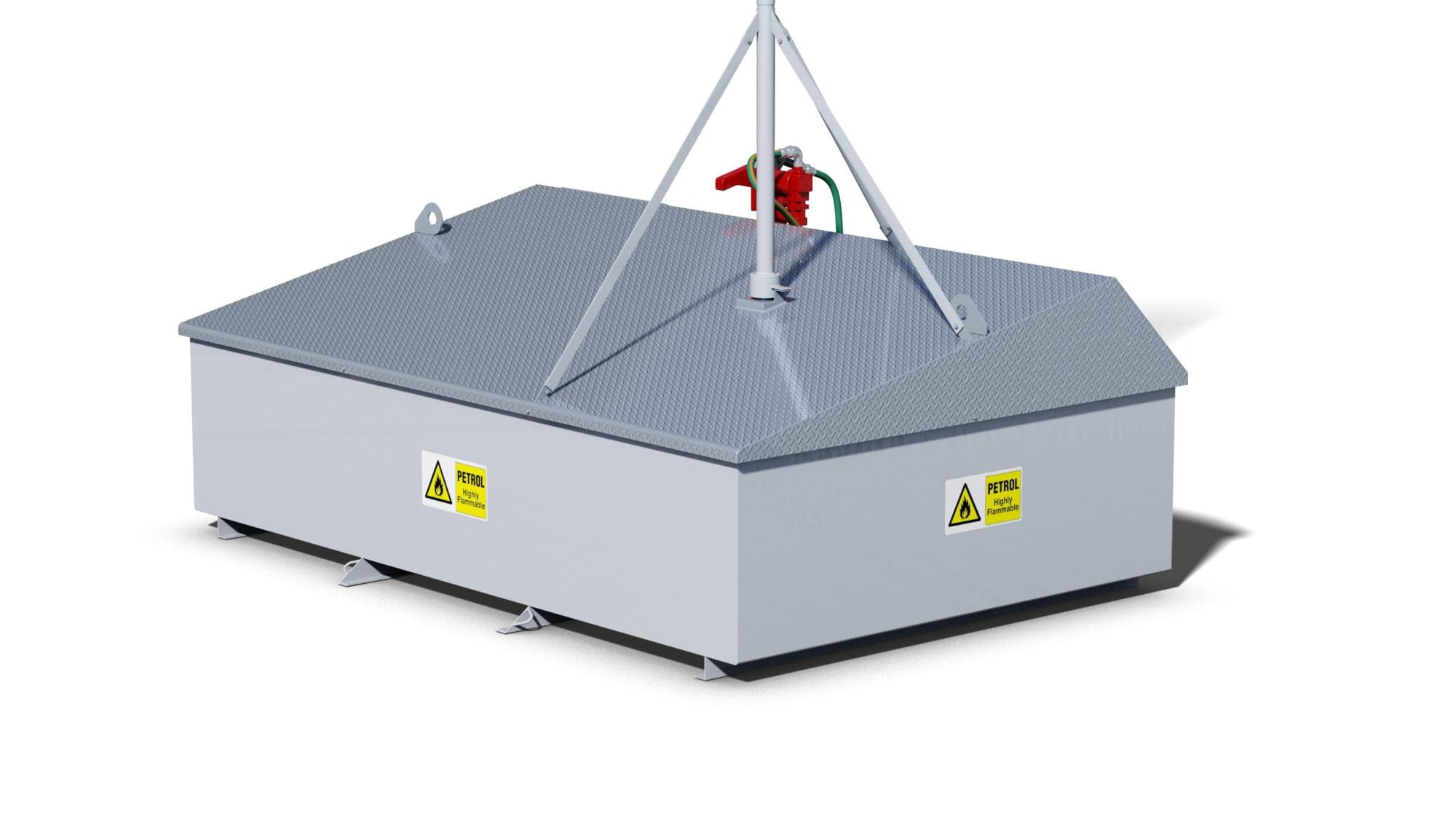

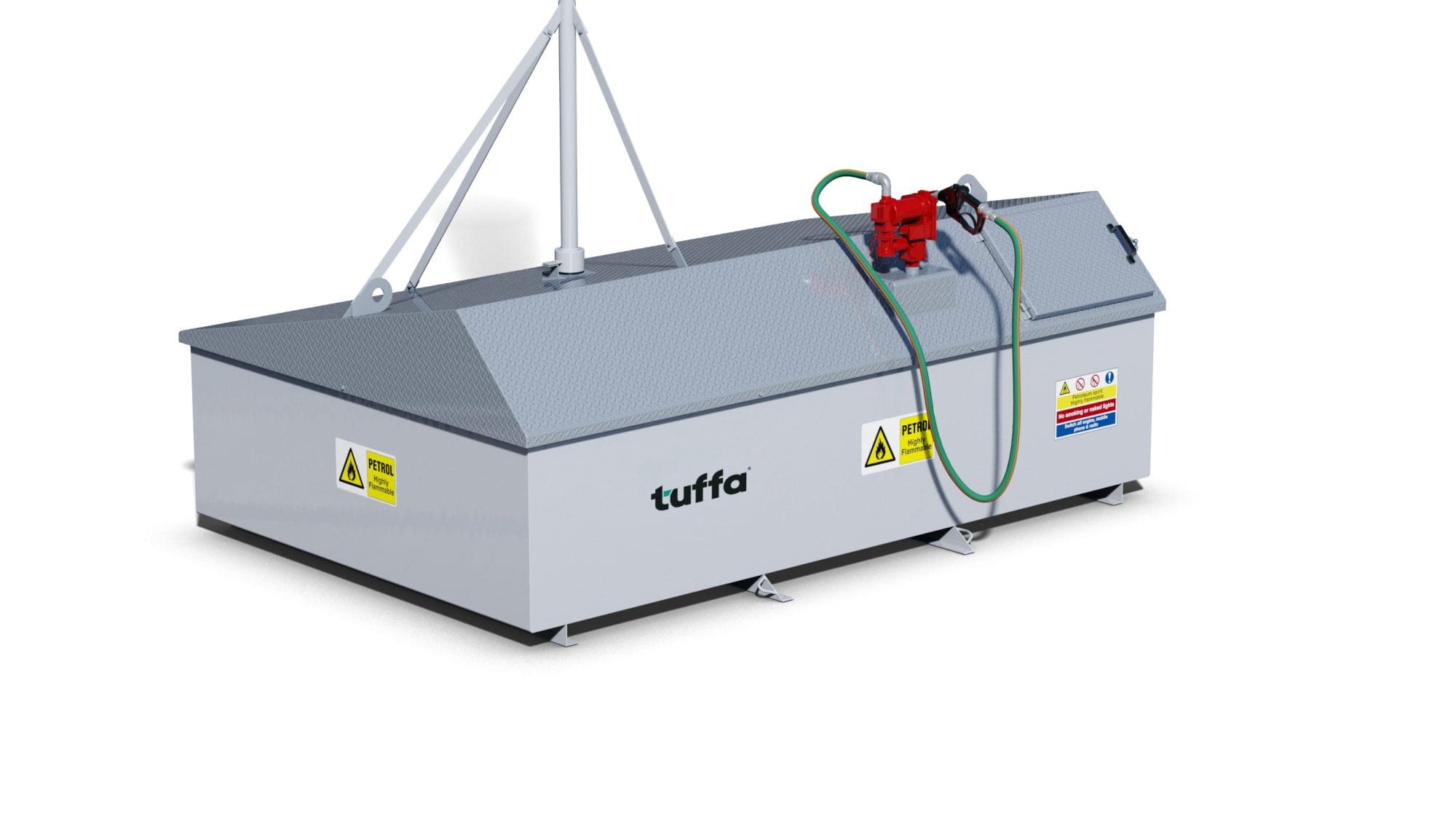

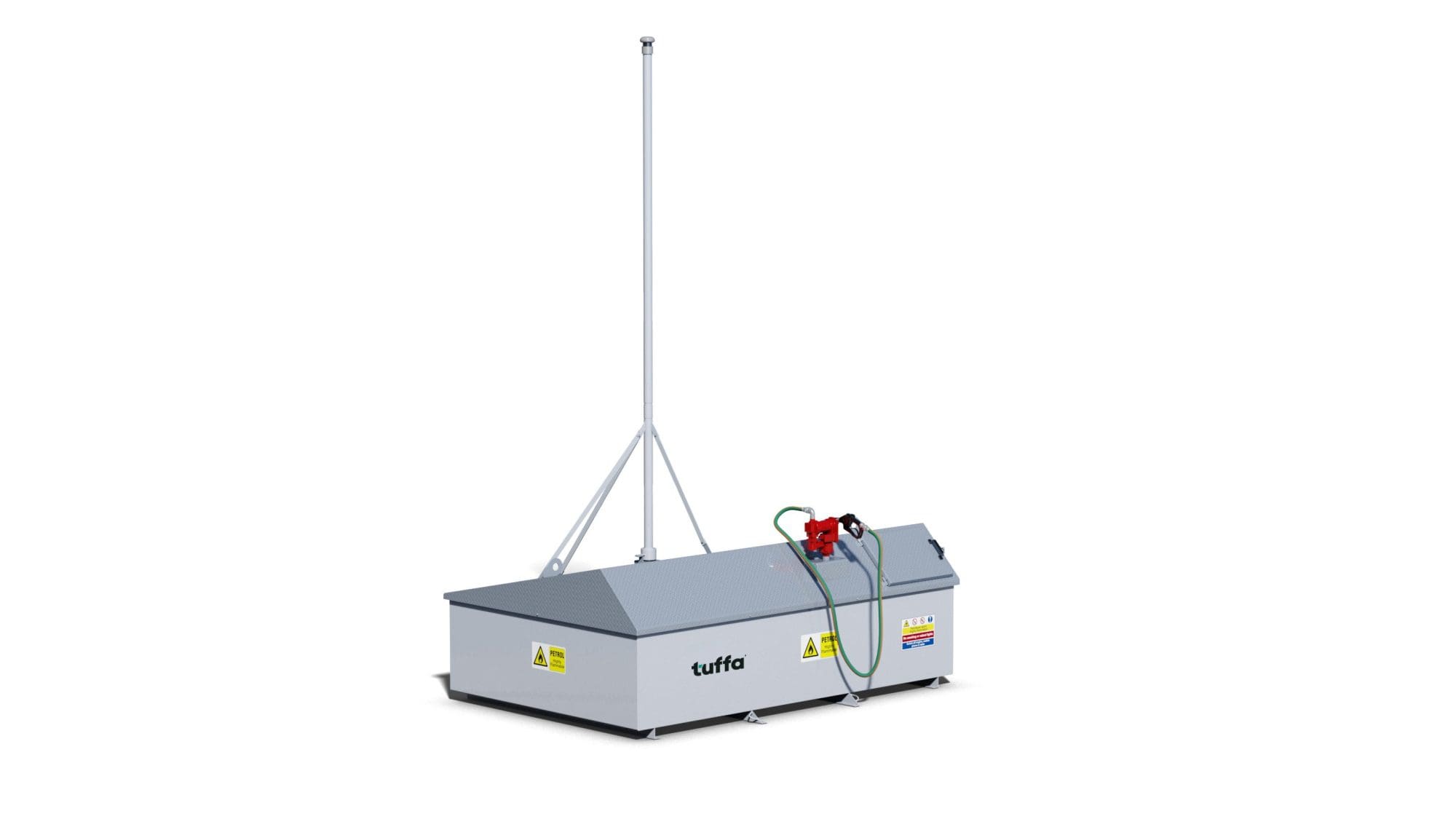

230V pump – for sites requiring a quicker flow rate than the standard hand pump, and have access to mains power, providing a forecourt style system.

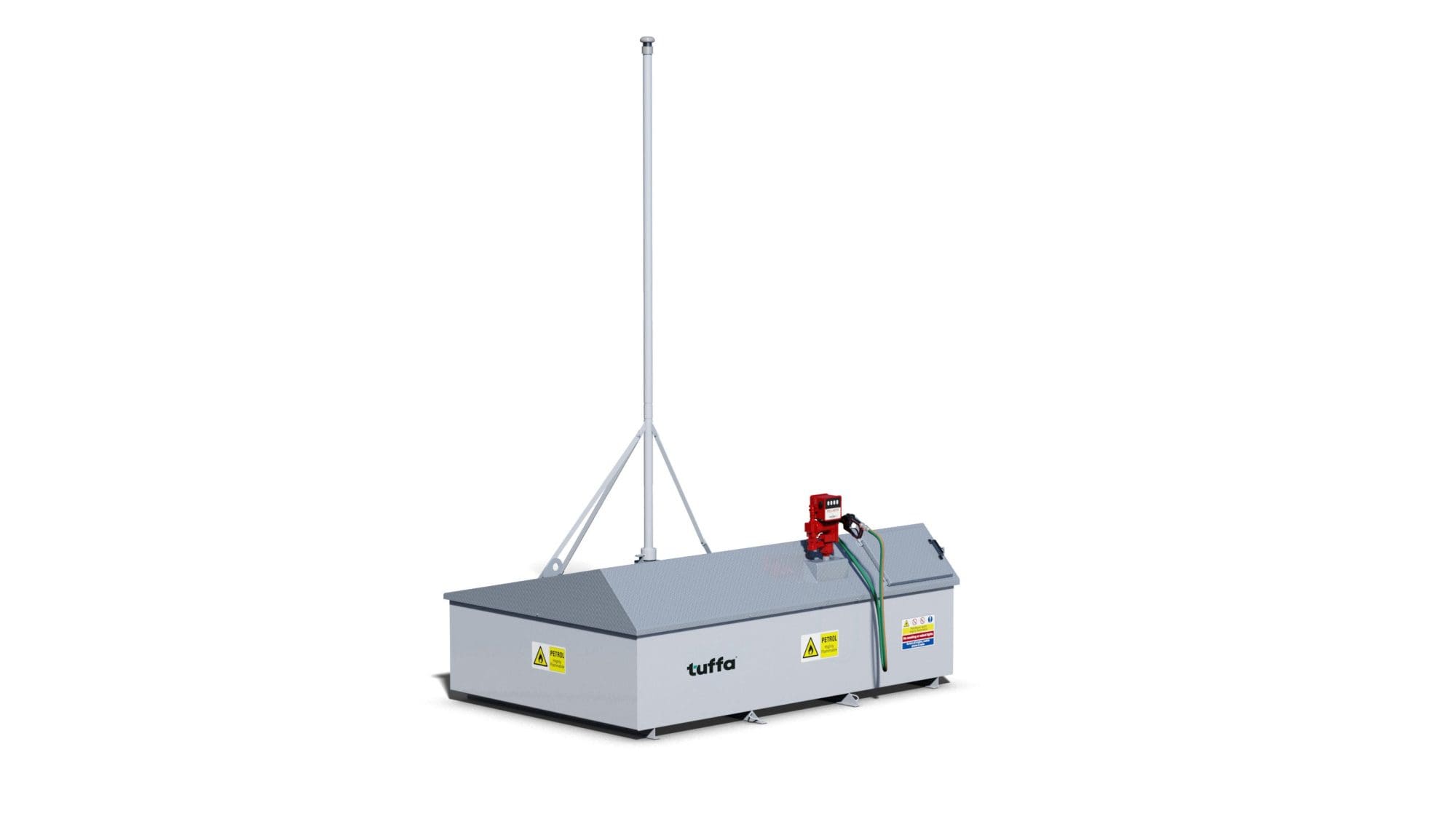

Flowmeter – a mechanical flowmeter with +/- 1% accuracy to measure the amount of fuel dispensed.

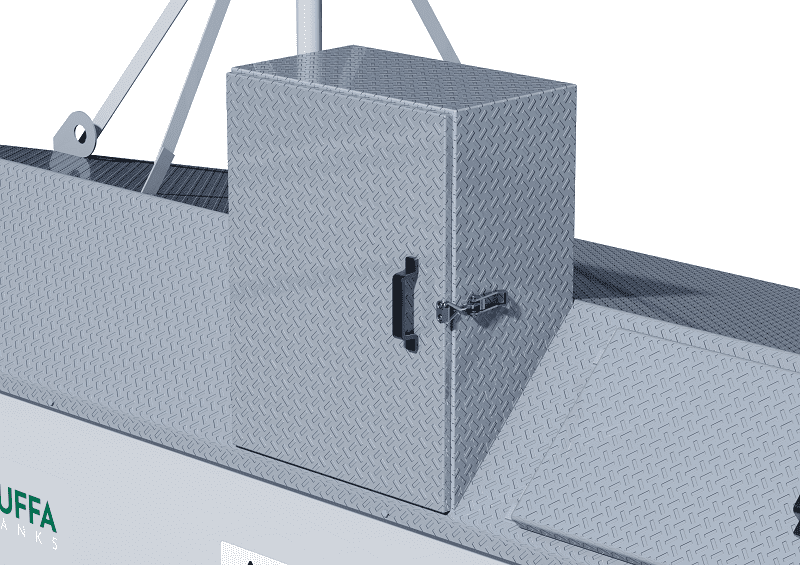

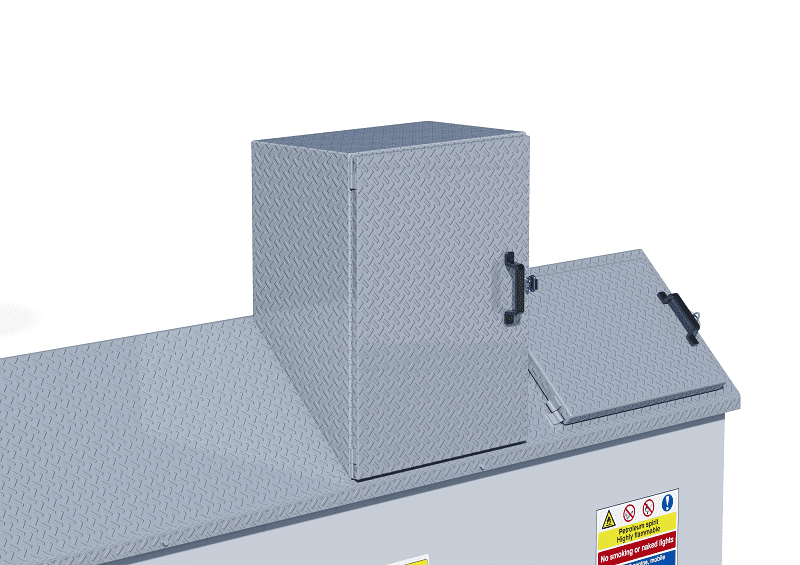

Pump cabinet – a lockable steel cabinet to house the pump providing additional security for your tank.

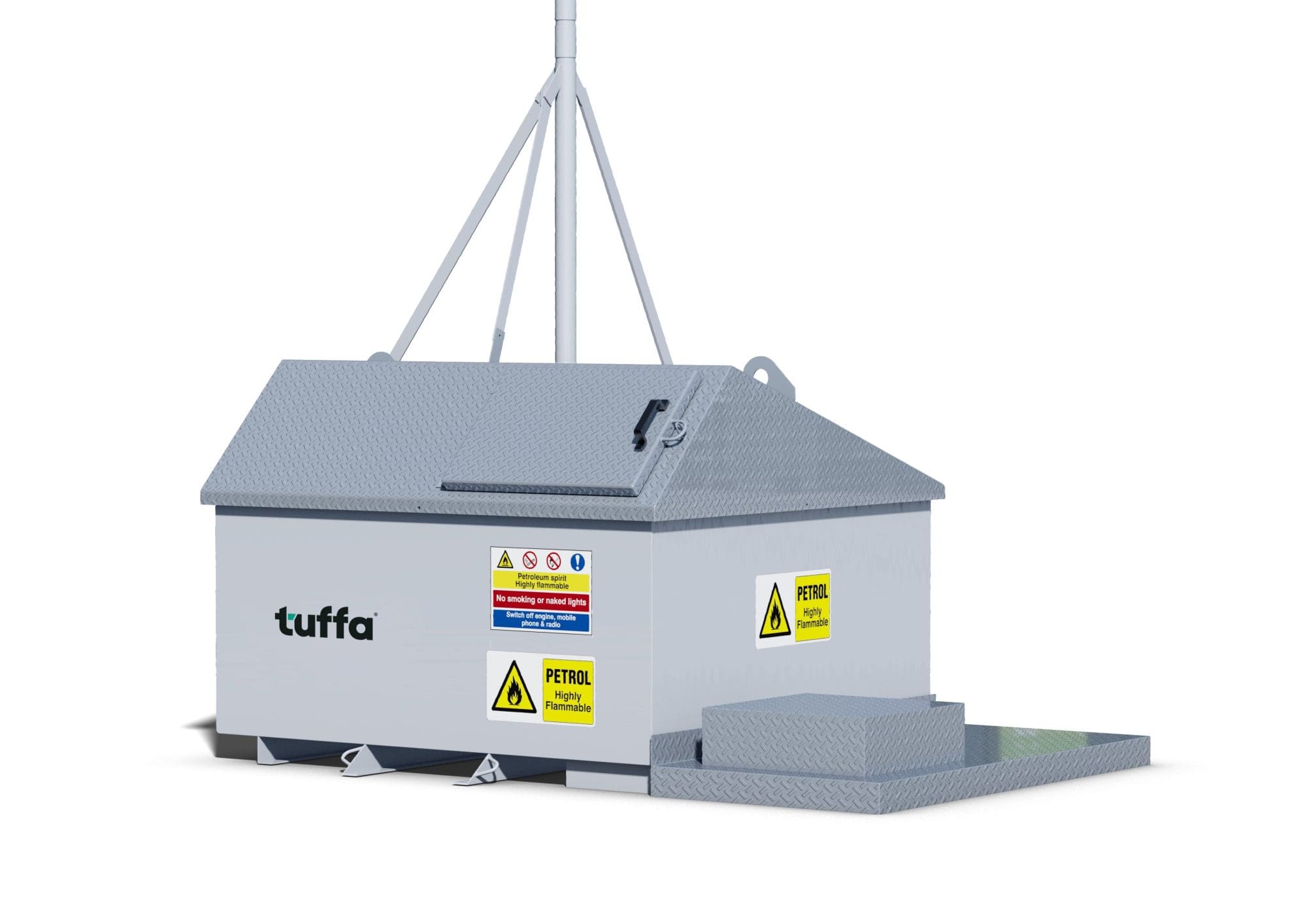

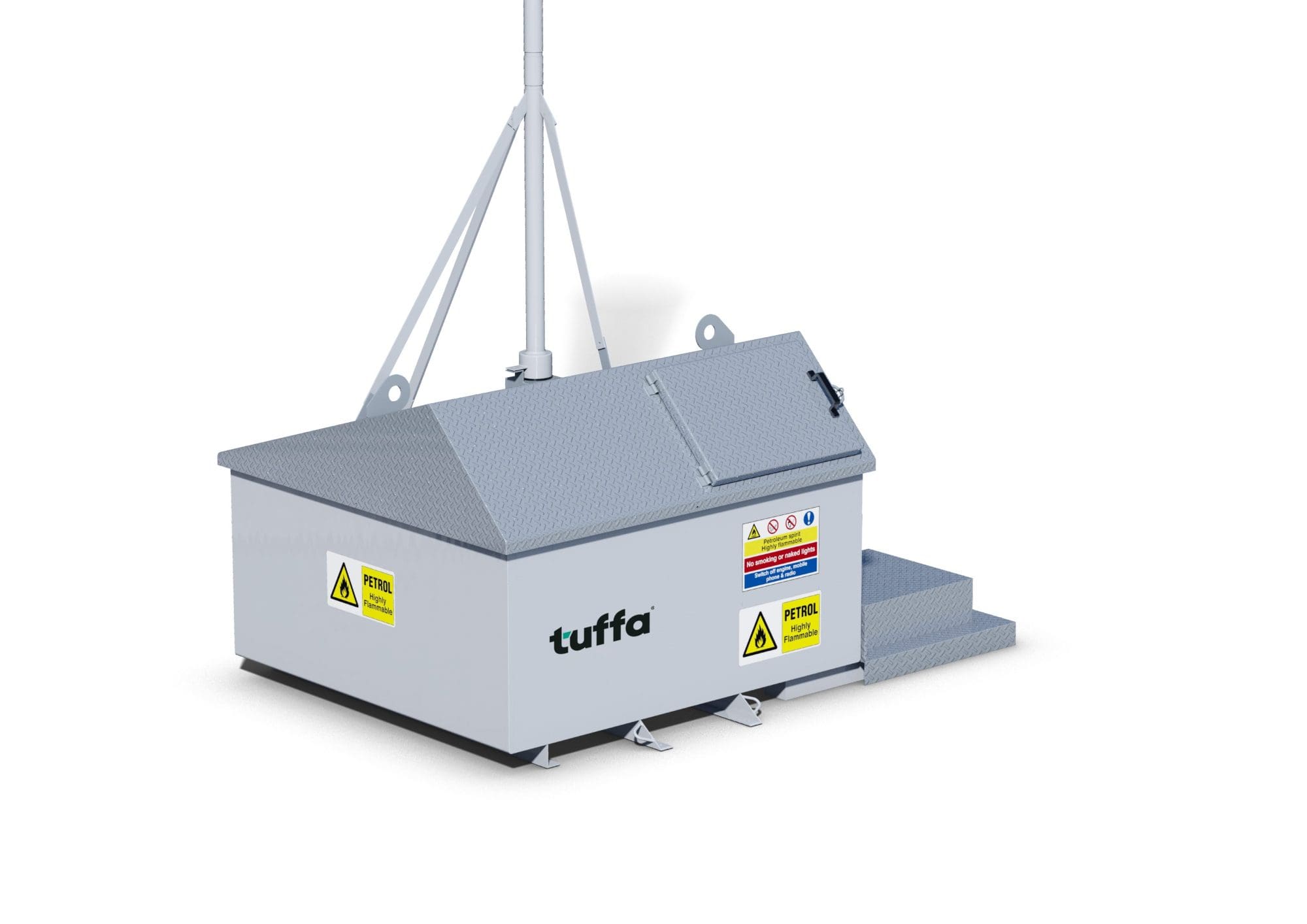

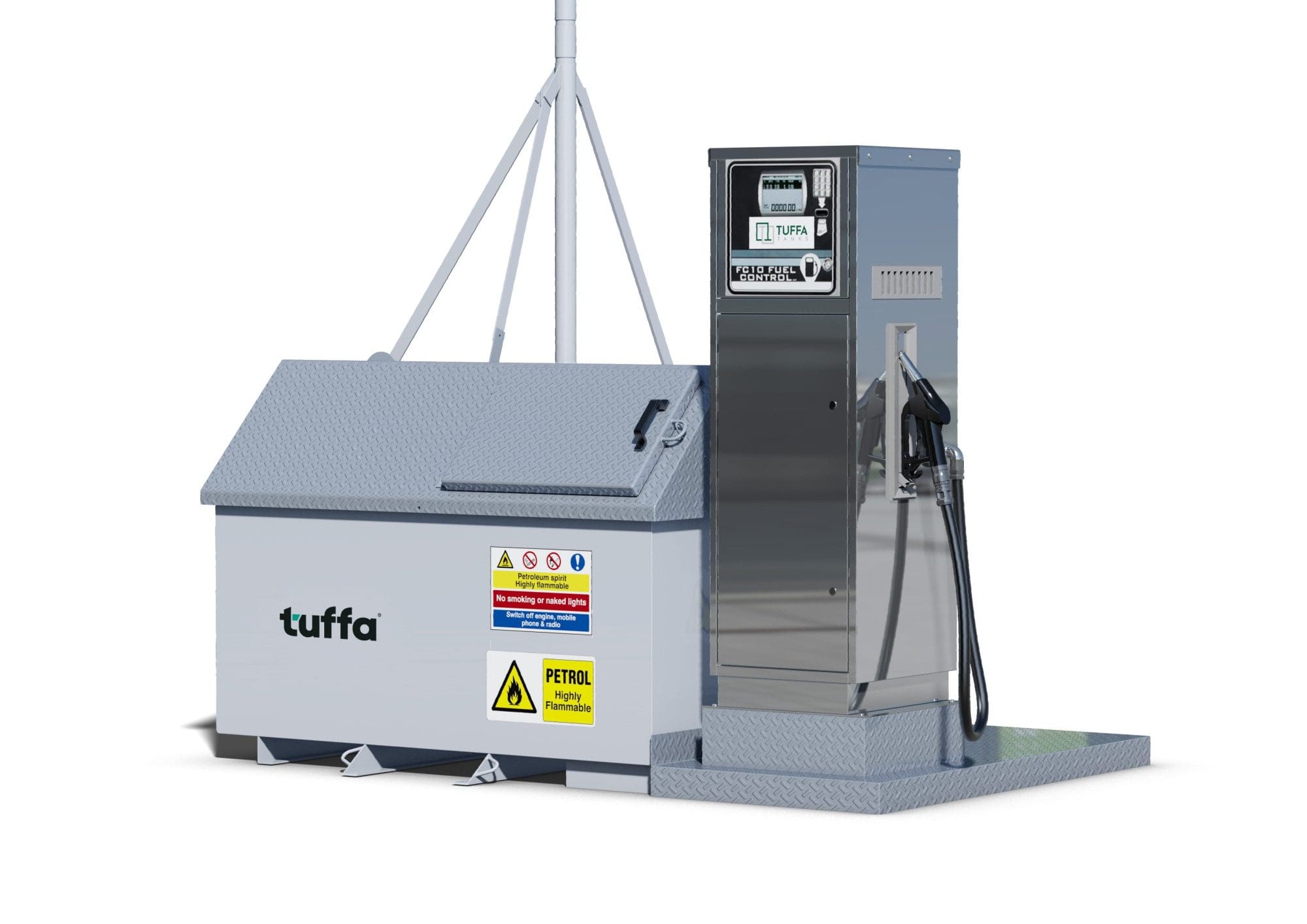

Top suction + dispenser plinth – 1 1/2″ top suction terminating with anti-siphon valve and dispenser plinth – replaces dispensing equipment and useful for those with existing dispensing equipment or who want to buy equipment separately.
Fire kit – although all petrol tanks are fully fire proofed, petrol remains a highly flammable substance. There is a statutory duty of care to ensure fire fighting equipment is easily accessible. The Fire Kit consists of two dry powder or foam extinguishers and fire bucket containing fire retardant material on a mobile unit.
Spill kit – areas where petrol is handled or stored should be provided with a means of controlling spills to prevent spreading to non-hazardous areas. We can provide a very effective solution consisting of a large, clearly labelled, 240 litre wheeled bin containing 8, 3 metre ‘socks’ filled with absorbent material plus 6 bags of loose absorbent material.

product pdfs

Do you want on-site petrol storage without the hassle and expense of burying and installing an underground tank? Our above-ground petrol tanks are available in capacities of up to 3,000 litres.
